Teinto engineers the electrical spine of modern medicine. We build the infrastructure that makes power worthy of operating rooms, MRI suites, and intensive care units. From voltage stabilization to seamless backup, from solar integration to isolated power systems—we deliver continuity so clinicians can focus on care, not outages.
More than an IT system, it is a dedicated unearthed power architecture with medical isolation transformers (3.15–10 kVA) and Insulation Monitoring Devices (IMD) that continuously measure resistance from 1 kΩ to 999 MΩ. It ensures that a first earth fault never trips breakers, maintaining uninterrupted power to ORs and ICUs while keeping leakage current below 50 μA. Coupled with a front‑end automatic voltage stabilizer (±1% regulation) and an automatic transfer switch (<0.5 s) to the diesel generator, this system forms a layered electrical fortress that complies with IEC 61557‑8, alerting staff at 50 kΩ (pre‑alarm) and 15 kΩ (main alarm) without ever shutting down critical care.
More than a backup, this solution deploys true online double‑conversion medical UPS units (100–200 kVA for MRI, 40–80 kVA for CT/DR) with galvanic isolation, output THD <2%, and a crest factor of 3:1 to handle pulsed loads. A three‑phase automatic voltage stabilizer (input range 304–456 V, ±2% regulation, 80 kA surge protection) pre‑conditions utility power, while a medium‑sized diesel generator (100–300 kVA, ±0.5% frequency, ±1% voltage) provides extended runtime. The system includes maintenance bypass with phase synchronization (±5°), battery monitoring via internal resistance tracking (30% rise triggers replacement), and SNMP/Modbus communication for real‑time alerts, ensuring zero image artifacts and zero data loss during grid disturbances.
More than renewables, this system integrates monocrystalline bifacial modules (550–600 Wp, 21.5% efficiency) with string inverters (dual MPPT, 98.5% efficiency) and a lithium‑iron‑phosphate battery storage (200–500 kWh, liquid‑cooled, 6,000 cycles at 80% DoD). The Smart Energy Management Platform (SEMP) uses model predictive control (MPC) based on historical load, weather forecasts, and OR schedules to optimize peak shaving, self‑consumption, and island mode transition (<20 ms via static transfer switch). With BMS monitoring every cell (voltage/temperature, three‑level protection) and DC arc‑fault detection, the system reduces grid dependence while providing 2–4 hours of critical backup, seamlessly coordinating with the diesel generator when solar and storage are insufficient.
More than a UPS, this solution deploys N+1 redundant modular UPS (three 60 kW modules for 120 kW capacity, 96.5% efficiency) for the data center, and separate LFP‑based UPS (40 kVA, 4‑hour runtime) for ICUs/ORs with battery state‑of‑charge accuracy ±1% and runtime prediction updated every 30 seconds. A bi‑directional DC‑DC interlink (150 kW) connects the main battery storage to the UPS DC bus, extending autonomy to 4 hours before generator start. Front‑end three‑phase voltage stabilizers (150% oversizing, ±2% regulation) and socket‑type single‑phase stabilizers (500 VA–2 kVA, <100 μA leakage) protect against sags and surges, while wireless cell monitoring (internal resistance, 30% pre‑failure alarm) ensures proactive battery replacement—guaranteeing that HIS/EMR servers and ventilators never lose power.

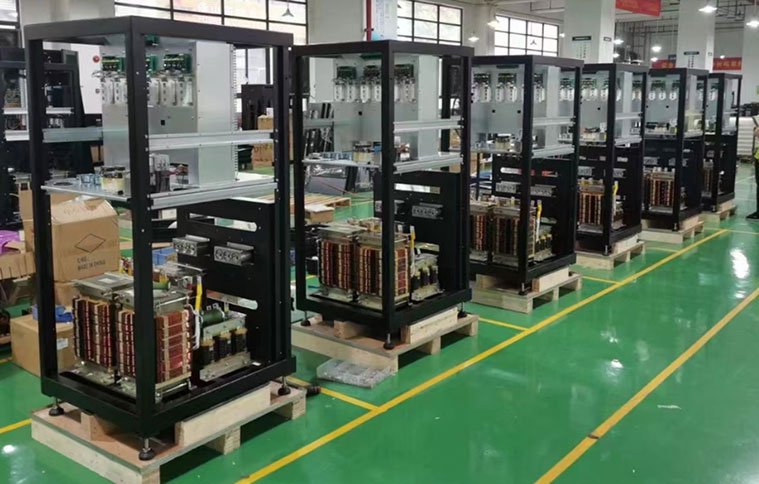

More than voltage correction, this solution installs brushless three‑phase automatic voltage stabilizers (500 kVA at main, 100–200 kVA per department) with multistage transformer and triac switching, regulating within ±1.5% for input variations of –25% to +20%, while suppressing harmonics up to the 50th order. Endpoint single‑phase servo‑motor stabilizers (1–10 kVA) and socket‑type solid‑state units (500 VA–2 kVA, 10 ms response, 1,000 J surge absorption) deliver ±2% accuracy directly to sensitive analyzers, ultrasound, and workstations. A network of Class‑A power quality analyzers (IEC 61000‑4‑30) continuously monitors THDv, flicker, and unbalance, feeding real‑time data to a central platform that correlates events with equipment alarms. Preventive maintenance includes annual torque‑checking, load‑bank verification, and scheduled brush/capacitor replacement, ensuring MTBF trends are actively managed.
More than a generator set, this tiered architecture comprises a large prime‑rated unit (300–4000 kVA, PMG excitation, 300% short‑circuit current for 10 s) for hospital‑wide essential loads, and medium generators (100–300 kVA) dedicated to ORs, ICUs, and data centers for independent autonomy. Automatic transfer switches (4‑pole, delayed‑transition with 3‑s center‑off) and a redundant fiber‑optic load management system coordinate three‑tier shedding (Life Safety, Critical, Equipment) based on kW/kVAR monitoring, preventing overload. The fuel system includes double‑wall bulk tanks (72‑hour capacity at 75% load) with automatic polishing (centrifuge + water separator, tested monthly per ASTM D2709), and weekly no‑load exercises plus monthly full‑load bank tests (60 minutes) verify start‑up within 10 seconds and ±0.5% voltage/frequency stability—delivering unwavering backup that outlasts any prolonged outage.
Operating theaters, ICUs, diagnostic imaging—each demands a different level of electrical integrity. Teinto systems are engineered to meet each threshold with documented validation. Medical IT systems ensure first-fault continuity in Group 2 locations, fundamentally preventing micro-shocks. MRI/CT/DR UPS delivers pure sine wave output with <10 ms transfer time. Every component selected for demonstrated performance under clinical load, not specification sheets.
Hospitals scale. Their power infrastructure must scale with them. Teinto matches backup capacity to clinical reality—battery storage from 100 kWh for small hospitals to 2000+ kWh for mega tertiary centers; diesel generators from 100 kVA to 4000 kVA. Not overspecified. Not undersized. Precisely calibrated to bed count, critical load, and expansion trajectory.
Most failures occur at the seams between systems. Teinto eliminates gaps where switches hesitate and transfers fail. Solar PV integrates with smart storage for partial off-grid resilience. Diesel generators tier with medical UPS for instantaneous takeover. Automatic voltage stabilizers condition power at both main line and endpoint. An ecosystem, not a collection of components.
Grid fluctuations manifest as equipment failure, data loss, interrupted procedures. Teinto treats voltage quality as a clinical variable. Three-phase stabilizers absorb sags and swells before they reach sensitive electronics. Socket-type stabilizers protect individual analyzers and refrigerators. When voltage is controlled, outcomes become predictable.
We design power systems for the moments when continuity is not optional—the operating theater, the imaging suite, the intensive care unit, the laboratory, the patient ward. Solutions that begin with clinical need and end with power that introduces no interruption, only certainty.
To remove power as a variable from patient care. Every system we build serves one purpose: electricity that clinicians never have to question, never have to hope holds out. Not just backup power. Predictable power. Power that simply does what power is supposed to do—and never stops doing it.
For the Critical Circuit: Medical IT systems for operating rooms and ICUs—where the first fault must never be the last.
For the Diagnostic Core: Dedicated UPS for MRI, CT, and DR—where image quality depends on pure, uninterrupted power.
For the Healing Environment: Solar-integrated storage and tiered generators—where resilience meets sustainability.
For Every Bed: Battery storage scaled to your census, stabilizers protecting your assets—where infrastructure anticipates acuity.
Subscribe to Teinto to unlock integrated power solutions across your entire healthcare facility—elevating electrical resilience, patient safety, and operational continuity through a unified ecosystem of generation, storage, stabilization, and isolation platforms.
